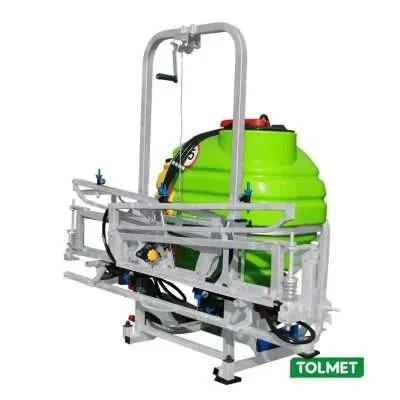

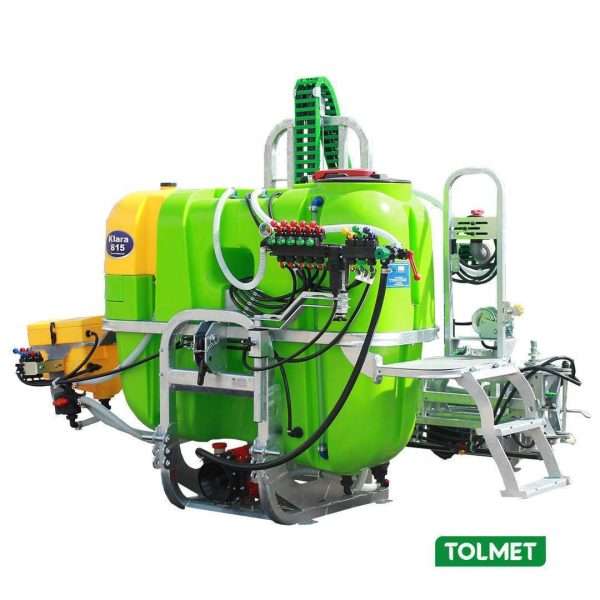

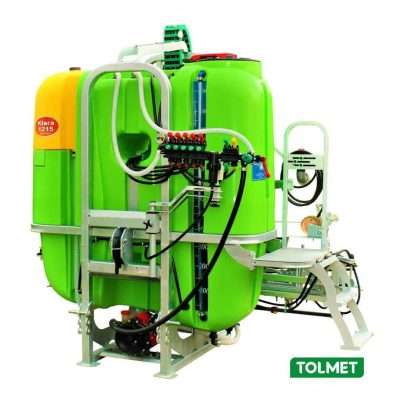

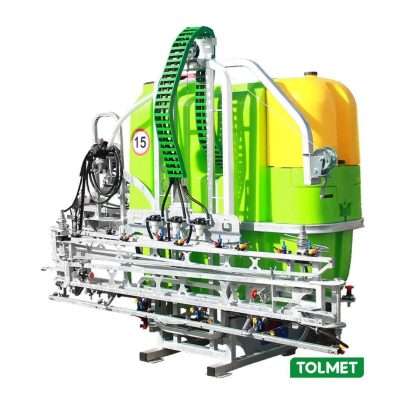

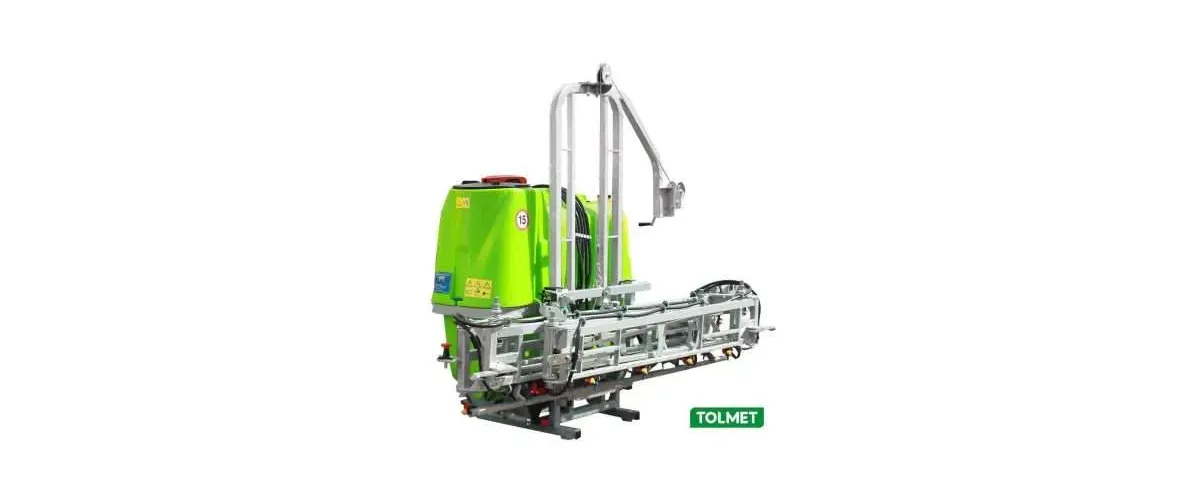

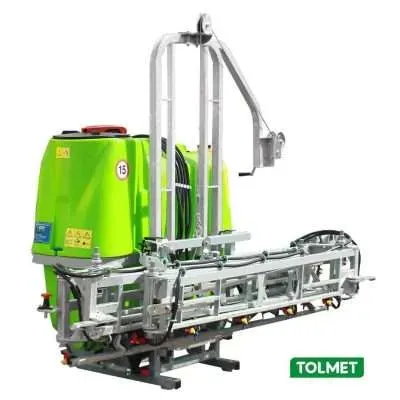

Tolmet Agricultural Sprayer
£450.00
ex VAT
£540.00 inc VAT
In stock - Ready to ship
Delivery: 3 - 5 business days
Key Features
Advanced Spray Technology
- Precision nozzle system for optimal coverage
- Adjustable spray patterns for different crop types
- High-pressure pump for consistent delivery
- Anti-drip valves to prevent waste
- Easy-clean filters for maintenance

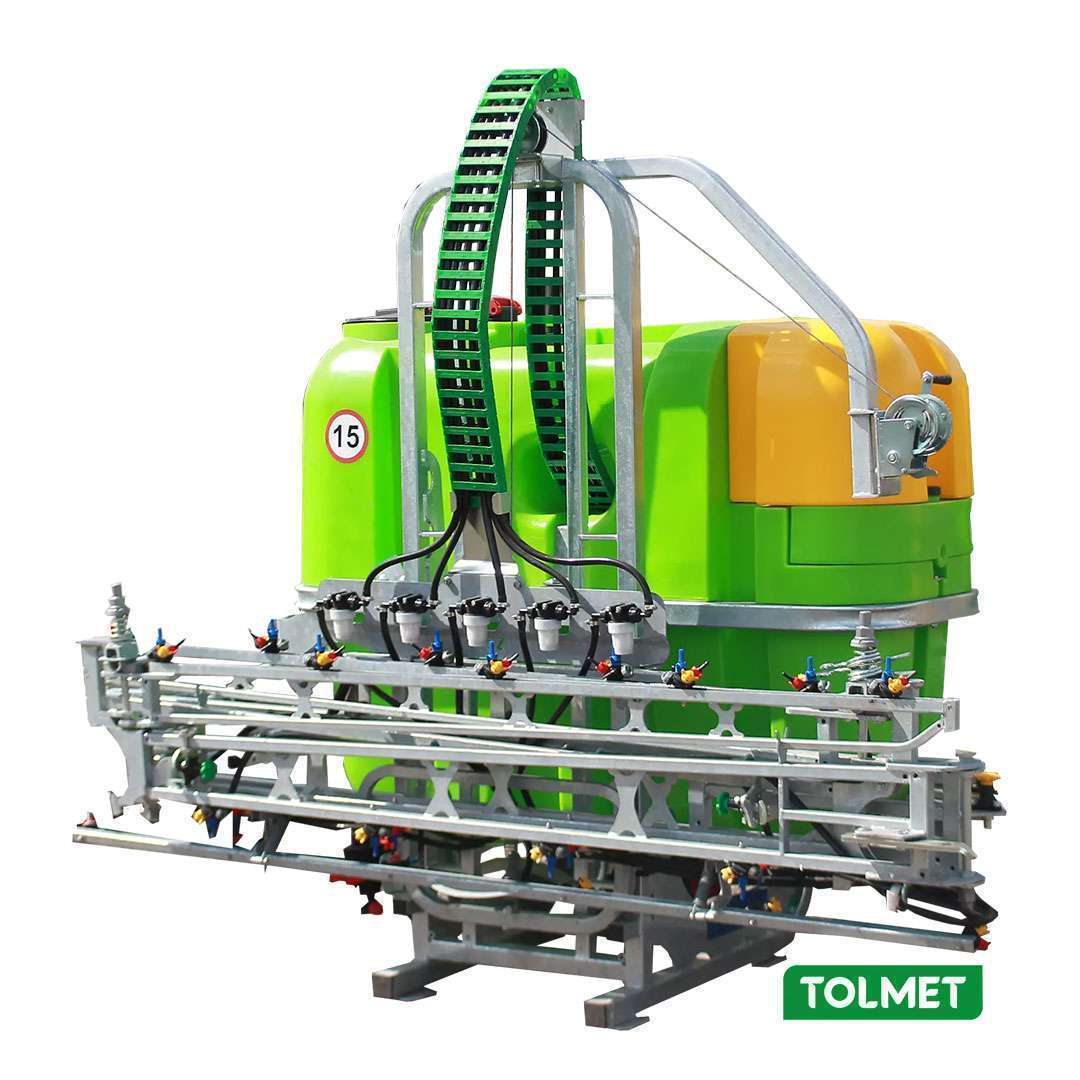

Large Capacity Tank
- 800-liter heavy-duty polyethylene tank
- Chemical-resistant interior coating
- Transparent level indicator
- Quick-fill top opening with strainer
- Drain valve for easy cleaning
Adjustable Boom System
- 12-meter adjustable boom width
- Height adjustment from 50cm to 200cm
- Folding design for transport
- Individual nozzle control
- Boom stabilization system
Easy Operation
- Intuitive control panel
- Digital pressure gauge
- Flow rate monitoring
- Emergency shut-off system
- Low liquid level alarm
Efficient Performance
- Covers up to 5 hectares per hour
- Consistent spray pattern
- Reduced chemical usage (up to 30%)
- Minimal drift technology
- Fuel-efficient operation
| Feature | Specification | Unit |
|---|---|---|
| Tank Capacity | 1000 | Litres |
| Spray Width | 12-24 | Metres |
| Working Pressure | 2-10 | Bar |
| Pump Flow Rate | 150 | L/min |
| Overall Length | 4.8 | Metres |
| Overall Width (Transport) | 2.5 | Metres |
| Overall Height | 2.2 | Metres |
| Empty Weight | 650 | Kg |
| Laden Weight | 1650 | Kg |
| Number of Nozzles | 24-48 | Units |
| Ground Clearance | 0.6-1.2 | Metres |
| Tyre Size | 11.2-24 | Inches |
| Component | Details |
|---|---|
| Pump Type | Hypro Centrifugal Roller Vane Pump |
| Pump Material | Chemical resistant polypropylene housing |
| Self-Priming | Yes - up to 3 metres suction lift |
| Control System | Digital electronic spray controller with GPS |
| Boom Control | Automatic boom height and tilt control |
| Section Control | Individual nozzle control with auto shut-off |
| Pressure Regulation | Automatic pressure compensation system |
| Agitation System | Hydraulic jet agitation with adjustable flow |
| Filtration | 100 mesh inline filters with pressure gauges |
| Tank Fill System | Quick fill with 3-inch cam-lock coupling |
| Chemical Induction | Integrated chemical hopper with rinse system |
| Safety Features | Emergency stop, anti-drip nozzles, overflow protection |
|
Heavy-duty galvanised steel frame with powder-coated finish |
|
Adjustable boom height from 0.6m to 1.2m for different crop types |
|
Hydraulic folding boom system for easy transport and storage |
|
GPS-guided application for precision farming and reduced overlap |
|
LED lighting system for safe operation in low-light conditions |
|
Easy-clean polyethylene tank resistant to chemicals and UV damage |
|
Variable rate application technology for optimised chemical usage |
|
Low-drift nozzle configuration for environmental protection |
|
Computerised spray records and field mapping capability |
|
Dual axle suspension for stable operation on uneven terrain |
|
Complies with UK and EU agricultural machinery safety standards |
|
2-year comprehensive warranty with nationwide service support |
| Nozzle Type | Flow Rate | Pressure Range | Application |
|---|---|---|---|
| XR TeeJet 110-02 | 0.79 L/min | 2-4 bar | General herbicides |
| XR TeeJet 110-03 | 1.18 L/min | 2-4 bar | Standard spraying |
| AI TeeJet 110-04 | 1.57 L/min | 3-6 bar | Air induction low drift |
| TT TeeJet 110-05 | 1.96 L/min | 2-5 bar | Fungicides |
| LD TeeJet 110-02 | 0.79 L/min | 2-6 bar | Low drift applications |
| VP TeeJet 110-03 | 1.18 L/min | 1.5-4 bar | Variable pressure |
| Hardi ISO 025 | 0.98 L/min | 3-5 bar | Precision spraying |
| Hardi ISO 03 | 1.17 L/min | 3-5 bar | Insecticides |
| Guardian Air 110-04 | 1.57 L/min | 2-8 bar | Ultra-low drift |
| Lechler IDK 120-03 | 1.18 L/min | 2-5 bar | Compact drift reduction |
| Lechler ST 110-04 | 1.57 L/min | 1-3 bar | Pre-orifice standard |
| Parameter | Minimum | Maximum | Optimal | Notes |
|---|---|---|---|---|
| Wind Speed | 0 km/h | 15 km/h | 5-10 km/h | Stop spraying above 15 km/h |
| Air Temperature | 5°C | 30°C | 15-25°C | Avoid frost conditions |
| Relative Humidity | 40% | 95% | 60-80% | Higher is better for most chemicals |
| Travel Speed | 4 km/h | 20 km/h | 8-12 km/h | Adjust for ground conditions |
| Application Rate | 50 L/ha | 400 L/ha | 150-250 L/ha | Depends on crop and chemical |
| Spray Pressure | 2 bar | 10 bar | 3-5 bar | Varies with nozzle type |
| Boom Height | 40 cm | 120 cm | 50-70 cm | Target crop height dependent |
| Water pH | 5.5 | 8.0 | 6.0-7.0 | Adjust with buffers if needed |
| Water Hardness | 0 ppm | 500 ppm | 50-200 ppm | Use water conditioner if high |
| Field Gradient | 0° | 15° | 0-8° | Use caution on steep slopes |
| Tank Agitation | 10% | 100% | 30-50% | Continuous during spraying |
| Droplet Size | 100 µm | 500 µm | 250-350 µm | Larger for drift reduction |
| Component | Daily | Weekly | Monthly | Quarterly | Annually |
|---|---|---|---|---|---|
| Nozzles | Visual check | Clean | Replace worn | Flow test | Replace all |
| Filters | Inspect | Clean | Deep clean | Replace | Full service |
| Pump | Check pressure | Lubricate | Oil change | Inspect seals | Full overhaul |
| Tank | Rinse | Clean | Deep clean | Inspect | Full inspection |
| Hoses | Visual check | Check fittings | Pressure test | Replace worn | Replace all |
| Boom | Check alignment | Tighten bolts | Lubricate | Inspect welds | Full service |
| Controller | Function test | Calibrate | Software update | Full calibration | Professional service |
| Tyres | Check pressure | Inspect tread | Rotate | Balance | Replace if needed |
| Hydraulics | Check leaks | Inspect | Check fluid | Change fluid | Full service |
| Frame | Visual check | Clean | Inspect bolts | Touch up paint | Structural inspection |
| Lights | Function test | Clean lenses | Check wiring | Replace bulbs | Full electrical check |
Spare Parts
-
SALEEOF-2026Engine Oil Filter
£45.00 £42.99 -
SALEHPA-500Hydraulic Pump Assembly
£450.00 £399.00 -
LED-WL-12VLED Work Light
£85.00 -
TB-HD-2024Transmission Belt
£120.00 -
SALEAFE-1000
Air Filter Element
£35.00 £29.99 -
HHK-FLEX
Hydraulic Hose Kit
£180.00
Addons & Options
VacuumFlex Pouring Tube (1.5m)
Enhances pouring precision and reach for complex crop applications.
Triple Nozzle System Upgrade
Advanced three-nozzle configuration for superior spray coverage and control.
Electric Shutoff Control Panel
Intelligent electronic control system for automated spray management.
Heavy-Duty Boom Extensions
Extends spray width from 12m to 18m for larger field coverage.
Chemical Injection System
Automated chemical mixing and injection for precise application rates.
GPS Auto-Guidance Kit
Precision guidance system for accurate row tracking and reduced overlap.
LED Work Light Package
Professional lighting system for safe early morning and evening operations.
Premium Maintenance Kit
Complete service package with spare parts and tools for year-round operation.
